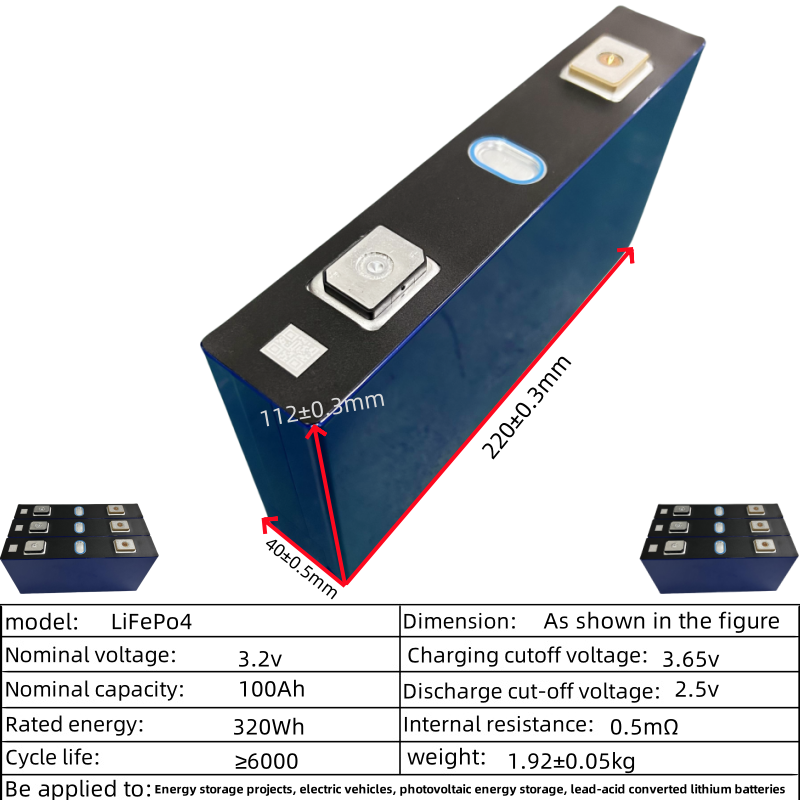

Specifications mm: 40220113

Dimensions mm: thickness 40* width 220* length 13mm (including the terminals 117mm)

Nominal voltage: 3.2V

Nominal capacity: 100Ah

Nominal energy: 320WH

Internal resistance: 0.5mΩ

Discharge cut-off voltage: 2.5V

arging limit voltage: 3.65V

Charging method: CC/CV (constant current constant voltage)

Weight: 2Kg

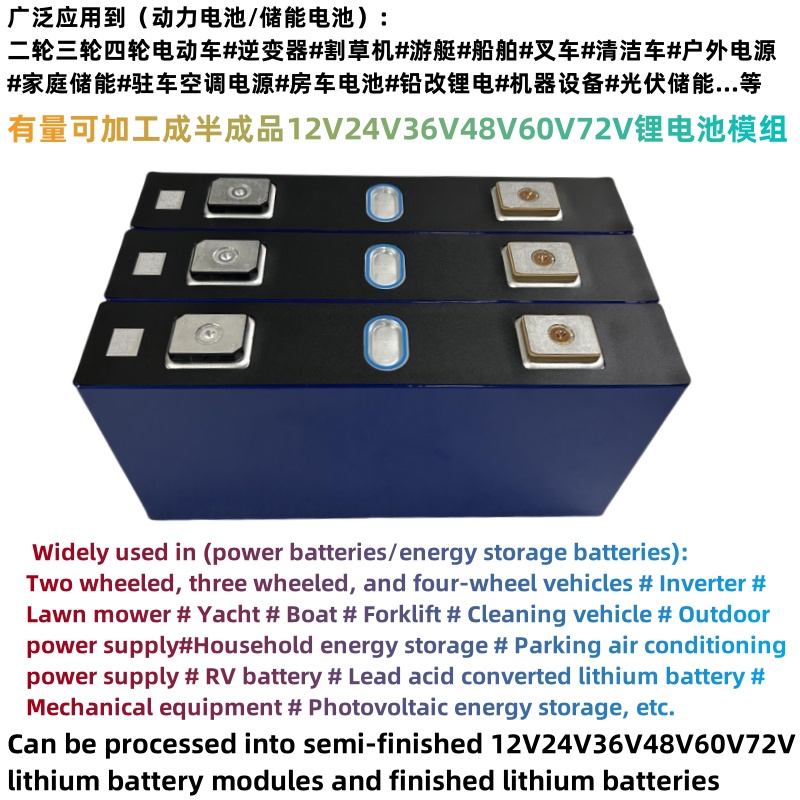

Applicable to: DIY RV battery packs, solar power station energy storage, lithium batteries for two-wheel, three-wheel, and four-wheel vehicles, 12V/24V lead-acid to lithium replacement, communication base stations, mobile power stations, equipment with large-capacity electricity storage, energy storage projects, and UPS emergency power supply making.

Lithium batteries are widely applied across multiple industries:

1. Consumer Electronics

This includes portable devices such as smartphones, laptops, and drones, where their high energy density and lightweight characteristics make them the preferred power source.

2. New Energy Transportation

Electric vehicles and electric bicycles rely on ternary lithium batteries or lithium iron phosphate batteries, achieving long driving ranges and safety through modular design.

3. Energy Storage Systems

In scenarios such as home energy storage and grid peak shaving, large-capacity lithium battery packs (e.g., 12V 300Ah specifications) support stable power supply for extended periods.

4. Industrial and Medical Equipment

In fields requiring high-rate discharge such as electric tools and medical instruments, automotive-grade pouch batteries or titanium acid lithium batteries are adopted to meet special needs.

5. Outdoor and Emergency Power

In scenarios like fishing, camping, and live streaming, waterproof outdoor power stations support fast charging, lighting, and device power supply.
