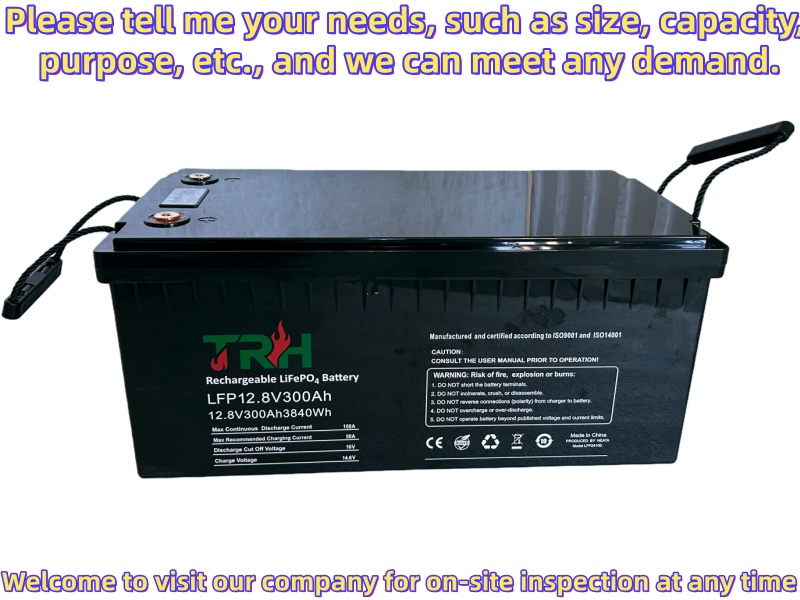

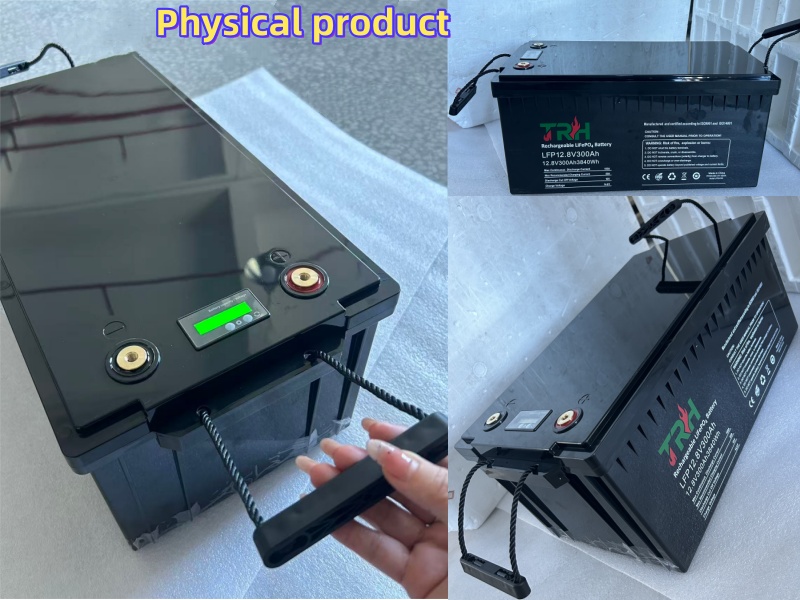

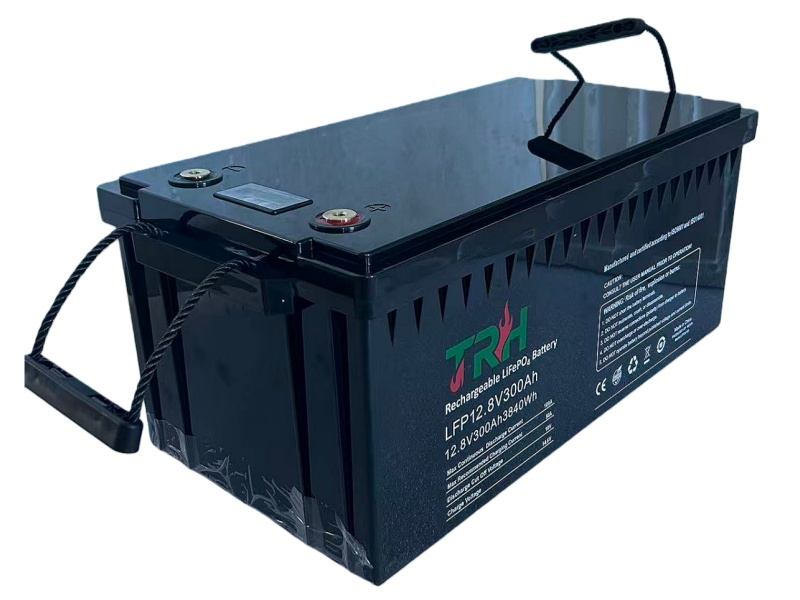

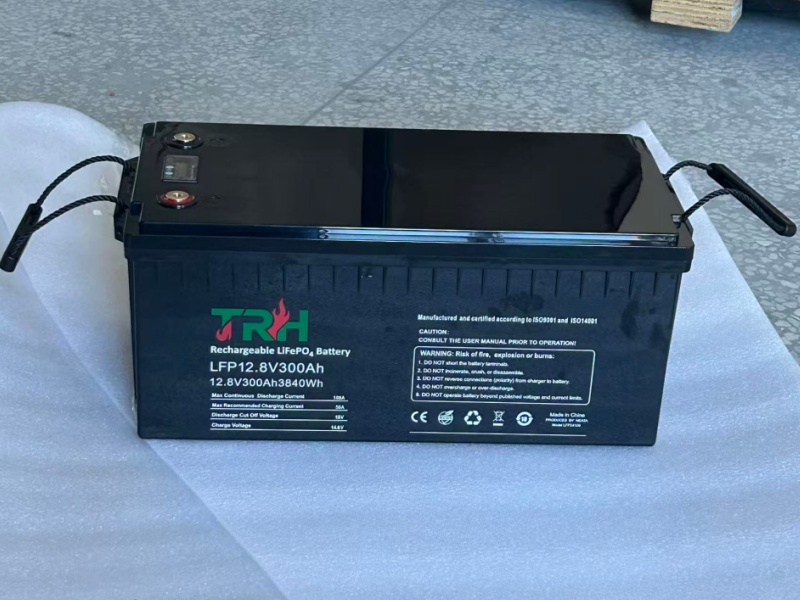

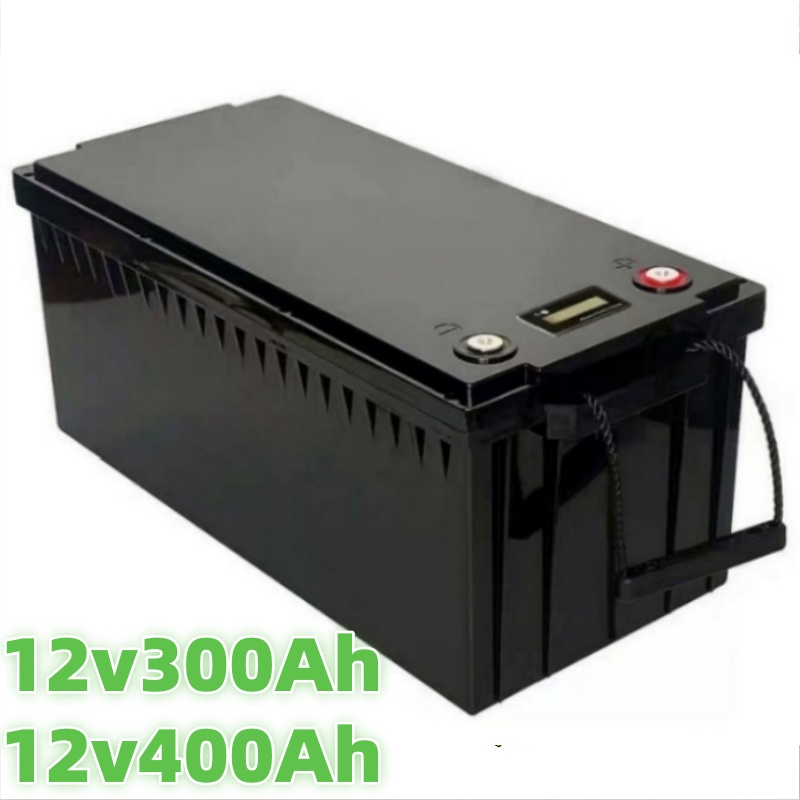

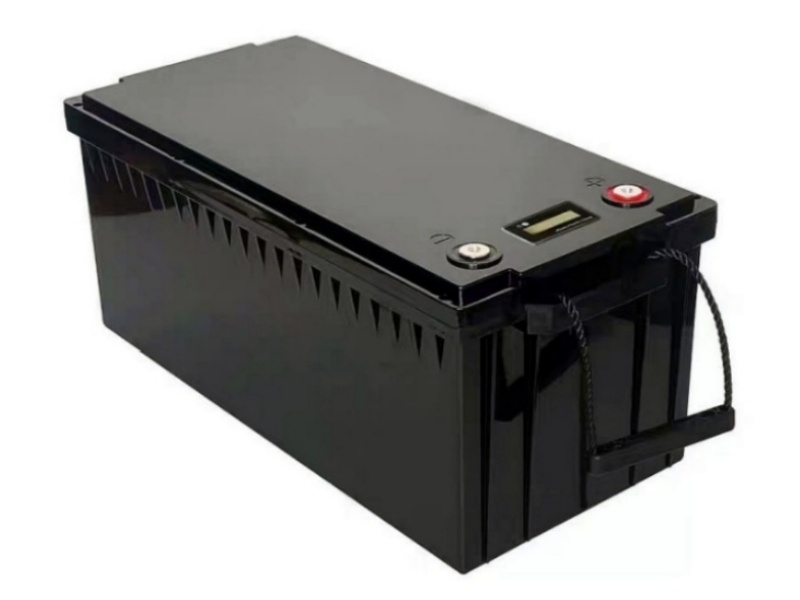

12.8v300AH

Cell Model: Lithium Iron Phosphate3.2V 300Ah



 Battery Specifications: 4S1P/14.6V/300Ah



 Nominal Voltage: 12.8V



 Nominal Capacity: 300Ah



 Charging Cut-off Voltage: 14.6V



 Discharging Cut-off Voltage: 10V



 Charging Current: 50A



 Discharging Current: 200A



 Charging Temperature: 0~55℃



 Discharging Temperature: -20~55℃



 Storage Temperature: -30~45℃

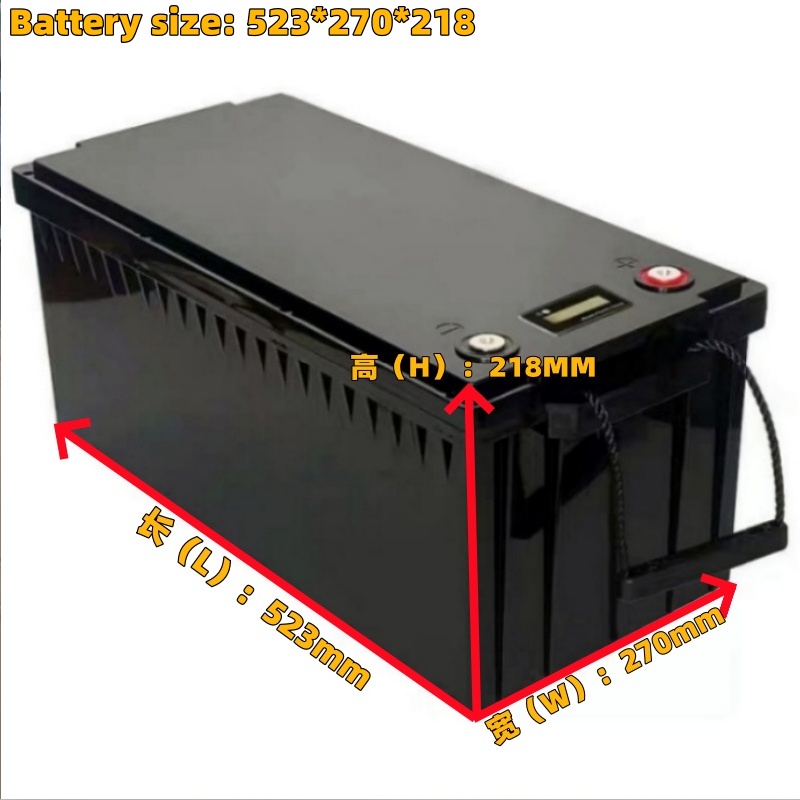

 Battery Housing: Sheet Metal Housing



 Battery Weight: 9.5KG

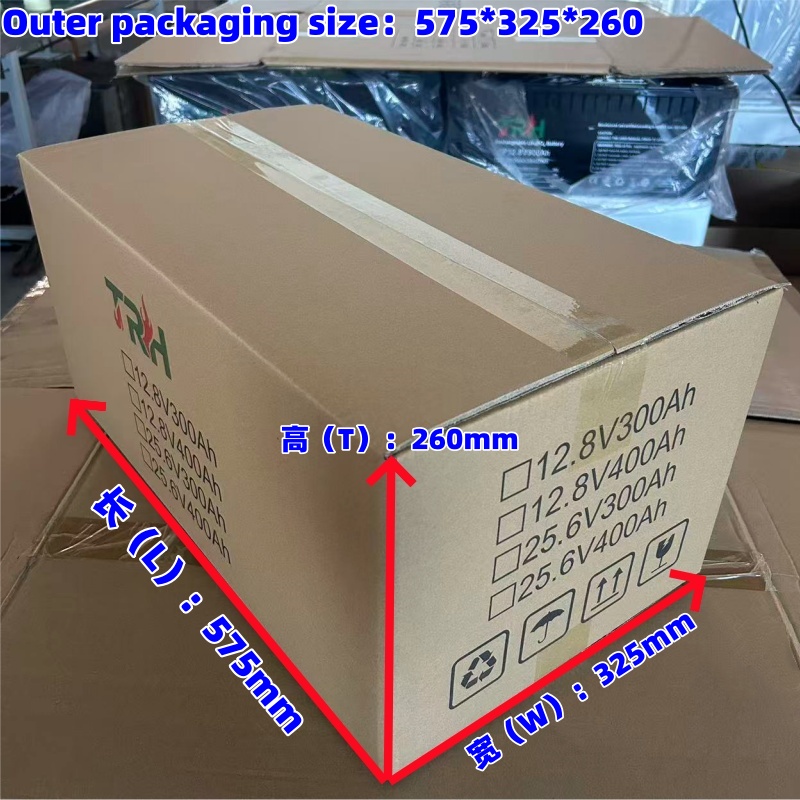

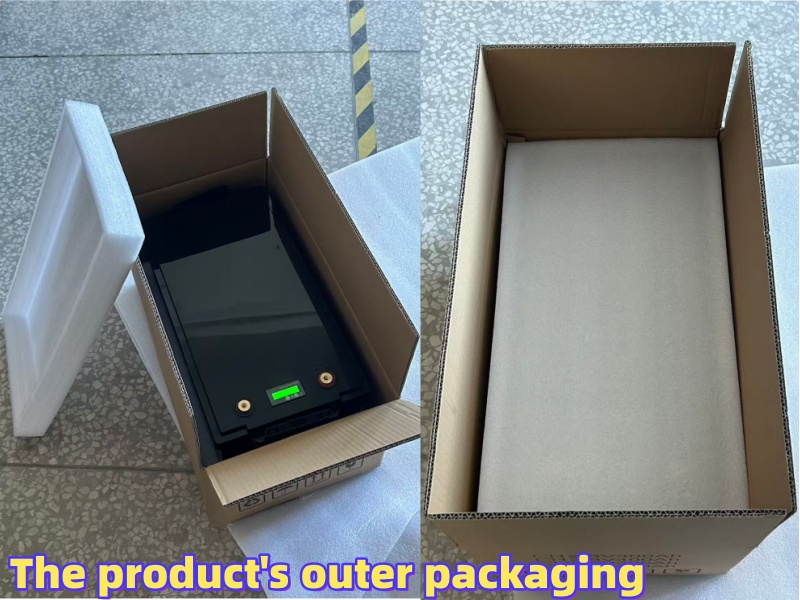

Weight including packaging: 24.3 ± 0.4 KG


Please let me know your requirements such as size, capacity, protection board parameters, etc., and we will develop a solution for you.


Contact Us

Product parameters





Description

12V lead-acid modified lithium batteries have been applied on a large scale in various fields such as transportation, energy storage, communication and special equipment. The core driving force is the significant advantages of lithium batteries in terms of energy density, lifespan, and efficiency.


① Transportation field: from passenger cars to vehicles

New energy vehicle low-voltage system:

models like Tesla Model S Plaid have taken the lead in replacing 12V lead-acid batteries with lithium batteries, weight by 80% and volume by 60%, with a lifespan matching that of the vehicle

Electric bicycles/golf carts:

improve range (reduce number of times delivery riders need to charge), shorten charging time, and exceed 1000 cycles of life (lead-acid only about 300 times


② Energy storage and backup power: from household to industrial-level coverage

Application scenarios Advantages of lithium batteries Typical examples

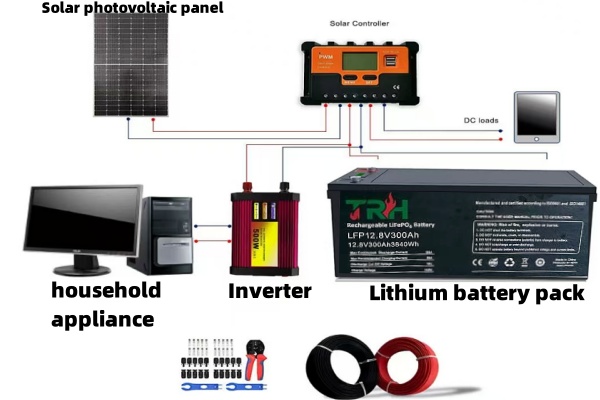

Household energy storage Compat with solar photovoltaic systems, power supply at night Store solar panel electricity for household use

Communication base station Reduce maintenance costs in remote areas, extend time Reduce the number of battery replacements and improve power supply stability

Marine/UPS energy storage High safety (no leakage), wide temperature adaptability 12V100AH lithium batteries support discharge from -20~60℃



③ Special Equipment and Emerging Fields

UAV/UGV: High energy density to meet the needs of lightweight, such as the stringent requirements ofs on battery weight and endurance


RV/Yacht: Support solar charging, adapt to high-power-consuming devices such as air conditioners, and the 12V100Ah model can provide 1.28kWh of electricity
